Compare Terracotta Facade Plans: A Deep Editorial Guide to Modern Masonry

Terracotta, literally “baked earth,” is perhaps the most sophisticated bridge between the ancient tectonic traditions of the Mediterranean and the high-precision requirements of the modern American skyscraper. While it was once the primary decorative skin for the early 20th-century Chicago School of architecture, its contemporary application has moved far beyond the ornamental. Today’s terracotta is a highly engineered, extruded ceramic that serves as the centerpiece of the most efficient “smart” enclosures in the world. It is a material that resists the transience of synthetic polymers, offering a service life that is measured in centuries rather than decades.

The challenge of modern facade engineering lies in the reconciliation of rigidity and movement. As we navigate the mid-2020s, the push toward “Net Zero” urbanism has placed the building envelope at the center of the carbon debate. Terracotta is uniquely positioned in this landscape; it possesses high thermal mass, inherent fire resistance, and a “circular” lifecycle. However, the move from traditional hand-pressed masonry to unitized, rainscreen-based terracotta systems has introduced a new layer of technical complexity. To successfully deploy these systems, one must look past the aesthetic of the clay and into the engineering of the aluminum sub-structure that supports it.

In the sections that follow, we will deconstruct the systemic variables that define ceramic enclosures. This investigation is designed for those who must navigate the intersection of architectural intent and fiscal reality. It moves beyond the surface-level descriptions often found in manufacturer brochures to provide a forensic look at how these systems behave under environmental pressure. By understanding the physics of the clay and the mechanics of the cavity, we can begin to meaningfully evaluate the strategic differences across the industry.

Understanding “compare terracotta facade plans”

To meaningfully compare terracotta facade plans, one must first acknowledge that the “plan” is not a static document, but a dynamic strategy for managing energy, moisture, and structural load. From a multi-perspective lens, a terracotta enclosure is evaluated differently by different stakeholders.

A frequent misunderstanding in the procurement phase is the “Weight-to-Performance” ratio. Many stakeholders assume that thicker terracotta panels are inherently more durable. In reality, modern extruded hollow-core panels provide the same impact resistance as solid slabs but with a 40% reduction in weight. When you compare terracotta facade plans, the focus should be on the “Sub-structure Integration”—how the ceramic panel attaches to the aluminum girts and how those girts are thermally broken from the building’s structural backup. A plan that prioritizes the panel over the attachment system is a plan that invites thermal bridging and seismic failure.

Oversimplification in this field often centers on the “Color and Finish” trap. While the visual variety of terracotta—ranging from natural sand-blasted mattes to high-gloss vibrant glazes—is its most seductive quality, the engineering reality is more nuanced. For instance, dark-glazed terracotta has a significantly higher solar absorption rate than light-colored unglazed units. If a plan does not account for the localized “Expansion Stress” caused by this heat gain, the ceramic units may eventually “spall” or crack at the clip points. True comparison requires a forensic look at the “Hygrothermal Balance” of the assembly.

Deep Contextual Background: The Evolution of Architectural Ceramics

The history of terracotta in the United States is a narrative of industrialization. In the late 1800s, terracotta was the “fireproof” answer to the wood-framed cities that had been devastated by urban conflagrations. Early American skyscrapers, like the Flatiron Building, utilized terracotta as a lightweight alternative to stone, often mimicking granite or marble. These were “Mass-Masonry” systems; the terracotta was filled with mortar and brick rubble, creating a solid, heavy wall that managed moisture through absorption.

By the mid-20th century, the rise of glass and aluminum curtain walls nearly drove the terracotta industry to extinction. However, the “Thermal Crisis” of the late 20th century sparked a revival. Architects rediscovered that terracotta’s thermal mass could be used to “dampen” temperature swings. The invention of the “Rear-Ventilated Rainscreen” changed everything. Instead of being part of a solid wall, the terracotta became a “screen”—a protective outer skin that allowed air to circulate behind it. This systemic evolution has led to the high-tech, unitized terracotta facades we see in 2026, which can be installed with the speed of a curtain wall but the soul of a masonry building.

Conceptual Frameworks and Mental Models

1. The “Open-Joint” Framework

Think of the terracotta facade not as a “jacket” but as a “gilled” membrane. In this framework, the gaps between the panels are not defects to be sealed with caulk; they are essential vents. This model assumes that water will get behind the terracotta. The goal is to ensure that once the water enters the cavity, it can drain out via gravity and dry out via airflow.

2. The “Tectonic Decoupling” Model

Terracotta and aluminum expand and contract at different rates. This framework requires that the panel is “decoupled” from the frame. The clips must allow the terracotta unit to “float” slightly. If the plan specifies rigid fastening, the building’s natural settlement or thermal expansion will shatter the ceramic units.

3. The “Solar-Metabolic” Logic

A terracotta facade is a giant thermal battery. This mental model focuses on “diurnal lag”—the ability of the clay to absorb heat during the day and release it at night. When you compare terracotta facade plans, look for those that utilize the “Air-Cavity” as a buffer zone, pre-heating or pre-cooling the air before it ever touches the building’s actual insulation layer.

Key Categories: Technical Variations and Bond Patterns

When you compare terracotta facade plans, the systems generally fall into one of five technical archetypes, each with distinct trade-offs.

System Category	Technical Logic	Primary Benefit	Primary Trade-off
Hollow-Core Rainscreen	Extruded panels; open joints	Lightweight; fast drainage	Limited sculptural depth
Solid-Plate Terracotta	Pressed slabs; high density	Extreme impact resistance	High weight; high cost

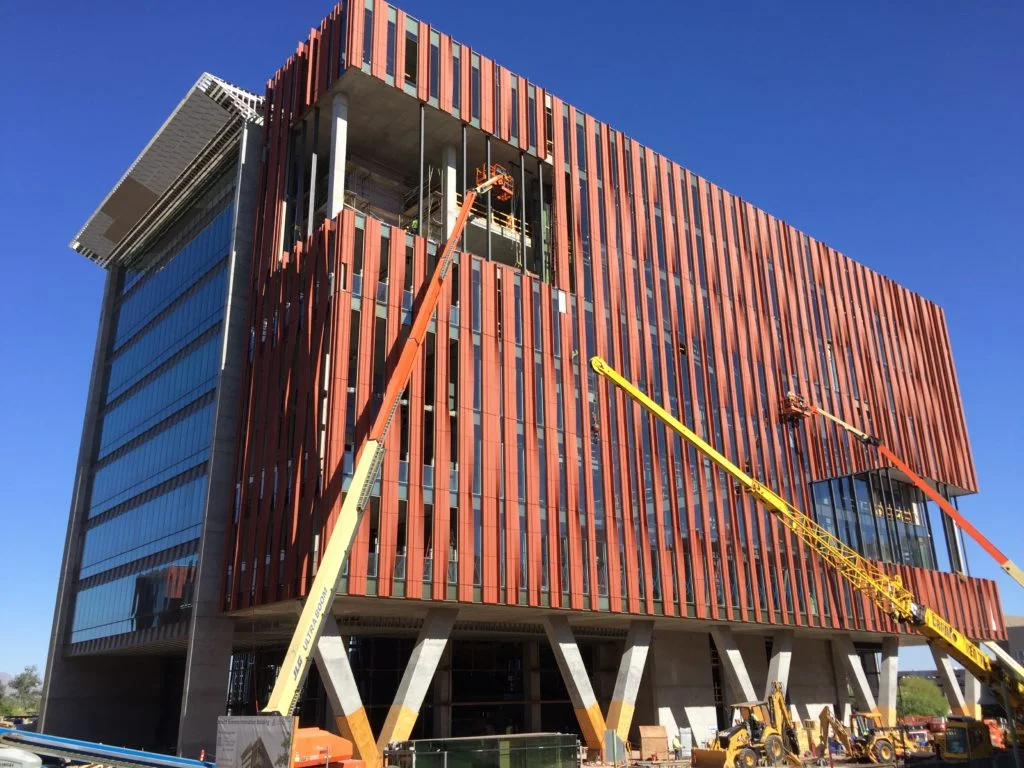

Terracotta Baguettes	Sun-shading “fins” / tubes	Passive cooling; privacy	Complex structural support
Grip-Stay Panels	Mechanical clips; overlap	Maximum water shedding	“Visible” hardware
Unitized Terracotta	Factory-assembled frames	Extreme speed of install	Requires large-scale cranes
Bespoke Sculptural	Hand-pressed; complex forms	Unique iconic identity	Longest lead times

Realistic Decision Logic: The “Geometry-to-Budget” Filter

If a project requires deep, 3D textures or “Shadow-Play,” the logic favors “Solid-Plate” or “Bespoke” systems. However, for a 40-story residential tower where the budget is sensitive to structural load, the “Hollow-Core Rainscreen” is the only viable path. The top terracotta facade plans of 2026 are those that mix these categories—using bespoke units at the street level where people can touch them, and extruded panels on the upper floors for efficiency.

Detailed Real-World Scenarios and Systemic Failure Modes

Scenario 1: The “Acoustic Whistle” in High-Wind Corridors

A luxury tower utilized terracotta baguettes (tubular sunshades) without internal dampeners.

• The Error: The wind passing through the hollow tubes created a “Flute Effect.”

• The Failure: Residents complained of a constant high-pitched whistle during storms.

• The Result: The tubes had to be retrofitted with internal foam plugs, an expensive and labor-intensive process.

• Planning Tip: When you compare terracotta facade plans for high-rises, ensure baguettes are modeled for aero-acoustic vibration.

Scenario 2: The “Hard-Caulk” Spalling Mistake

A renovation project attempted to “waterproof” an old terracotta facade by sealing the joints with high-modulus silicone.

• The Error: Moisture became trapped behind the panels, and the panels had no room for thermal expansion.

• The Failure: As the panels heated in the sun, they pushed against the rigid caulk. The edges of the terracotta “spalled” (cracked off), exposing the raw clay.

• Result: Total loss of aesthetic value and compromised drainage.

Scenario 3: The “Thermal Bridge” at the Shelf Angle

A project used terracotta tiles over a concrete slab but failed to use thermal breaks at the steel supports.

• The Error: The steel angles acted as heat conductors.

• The Failure: In winter, the interior floor near the facade stayed 15°F colder than the rest of the room, leading to condensation and mold.

• Planning Tip: Always look for “Thermal Isolation” hardware in any facade plan comparison.

Planning, Cost, and Resource Dynamics

Terracotta is a “Front-Loaded” material. The “First-Cost” is high, but the “Amortized Cost” over 50 years is significantly lower than aluminum or fiber cement.

Cost and Variability Table (2026 Estimates)

Intervention Scale	Cost (per sq. ft.)	Engineering Complexity	Expected Lifecycle
Standard Extruded	$70 – $110	Moderate	75 – 100 Years
Custom Glazed/Textured	$120 – $180	High	100+ Years
Sculptural / Baguette	$150 – $250	Maximum	100+ Years
Unitized (Pre-framed)	$200 – $350	Extreme	60 – 80 Years

Opportunity Cost: The biggest hidden cost in terracotta is the “Lead-Time Lag.” Because terracotta is fired in kilns, a single change in the color or profile can add 16 to 24 weeks to a schedule. A successful plan must “Freeze” the design earlier than almost any other material type.

Tools, Strategies, and Technical Support Systems

1. 3D Laser Scanning: Capturing the “As-Built” structure to ensure the aluminum girts are perfectly plumb. Terracotta has zero “flex,” so the frame must be perfect.

2. Hygrothermal Modeling (WUFI): Simulating moisture movement in the cavity to ensure the air-flow is sufficient to dry the back of the clay.

3. Color Spectrophotometry: Ensuring that “Batch A” from the kiln matches “Batch B” six months later.

4. Seismic Shaking-Table Tests: Essential for terracotta in California or the Pacific Northwest, as the material is brittle and requires specific “lateral-drift” tolerances.

5. BIM Level 5 Integration: Every terracotta panel is unique; BIM allows each unit to be barcoded and tracked from the kiln to its specific coordinate on the building.

6. Glaze Durability Testing (Autoclave): Checking for “Crazing” (fine cracks in the glaze) before the panels are shipped.

Risk Landscape: A Taxonomy of Ceramic Hazards

• Material Brittleness: Unlike metal, terracotta will not dent; it will shatter. The risk is highest during construction and at street-level impacts.

• Efflorescence: White salt deposits caused by improper drainage or the use of “Hard Water” in the cavity during construction.

• Thermal Shock: Rare, but can occur in extremely dark glazes when a cold rain hits a sun-baked panel, leading to micro-cracking.

• Logistical Breakage: The “Last-Mile” risk. If five custom panels break in transit, the project could be delayed by months while replacements are fired.

Governance, Maintenance, and Long-Term Adaptation

A terracotta facade is a “Low-Stewardship” asset, but it is not “No-Maintenance.”

The Stewardship Checklist

• Annual: Inspect “weep vents” and “joint-screens” for insect nests or debris.

• 5-Year: Drone-based infrared survey to check for moisture accumulation in the cavity or failed thermal breaks.

• 10-Year: Inspection of the aluminum clips for “Stress Corrosion Cracking,” especially in coastal salt-air environments.

• Adjustment Triggers: If a glaze begins to “chalk” or if a panel shows vertical cracking, it is a trigger for an immediate structural audit of the attachment hardware.

Measurement, Tracking, and Evaluation

• Leading Indicators: “Batch Uniformity” scores and “Kiln Yield” percentages.

• Lagging Indicators: The “Delta” in energy use compared to the design model. A high-performing terracotta facade should reduce the cooling load by 15-20% through thermal lag.

• Qualitative Signals: The “Acoustic Silence.” Terracotta is an excellent acoustic dampener. If street noise is noticeably higher inside, it indicates a failure in the joint-baffle system.

Common Misconceptions and Oversimplifications

• Myth: “Terracotta is too heavy for tall buildings.”

  • Correction: Extruded hollow-core panels are often lighter than many stone or pre-cast systems.

• Myth: “It’s just like brick.”

  • Correction: Brick is a “Mass” material; terracotta is a “Screen.” They behave differently thermodynamically.

• Myth: “Glazed terracotta is waterproof.”

  • Correction: The glaze is waterproof, but the system is a rainscreen. Water still passes through the joints.

• Myth: “It will fade in the sun.”

  • Correction: Terracotta is mineral-based and UV-stable. Unlike polymers or some metal paints, it will not fade in 100 years.

• Myth: “You can’t replace a single panel.”

  • Correction: Modern rainscreen clips allow for “Individual Unit Replacement” without dismantling the wall.

• Myth: “It’s only for historic-looking buildings.”

  • Correction: Some of the most “Futurist” buildings in the world utilize terracotta for its complex, 3D geometries.

Ethical and Practical Considerations

In the 2026 market, the “Embodied Carbon” of terracotta is under the microscope. While the kilns require significant energy, the “Life-Cycle Assessment” (LCA) usually favors terracotta because it lasts 100+ years and is 100% recyclable. We must also consider the “Sourcing Ethics” of the clay. Top-tier manufacturers now utilize “Closed-Loop” water systems and “Waste-Heat Recovery” from the kilns to pre-dry the raw clay, significantly reducing the environmental footprint.

Conclusion: The Architecture of Longevity

The decision to compare terracotta facade plans is ultimately a decision to build for the long-term. In an era of “Disposable Architecture,” terracotta stands as a defiant material of permanence. It is a system that rewards patience—patience in planning, patience in firing, and patience in the slow development of a building’s character over time.

A successful terracotta facade is one where the “Physics of the Clay” and the “Mechanics of the Frame” are in perfect equilibrium. It is not just a wall; it is a metabolic membrane that breathes, protects, and endures. For those steward-ship minded developers and architects, terracotta represents the pinnacle of urban enclosure technology—a material that is as ancient as the earth and as precise as the future.
