Composite Facade Construction Plans: An Editorial Guide to Hybrid Enclosures

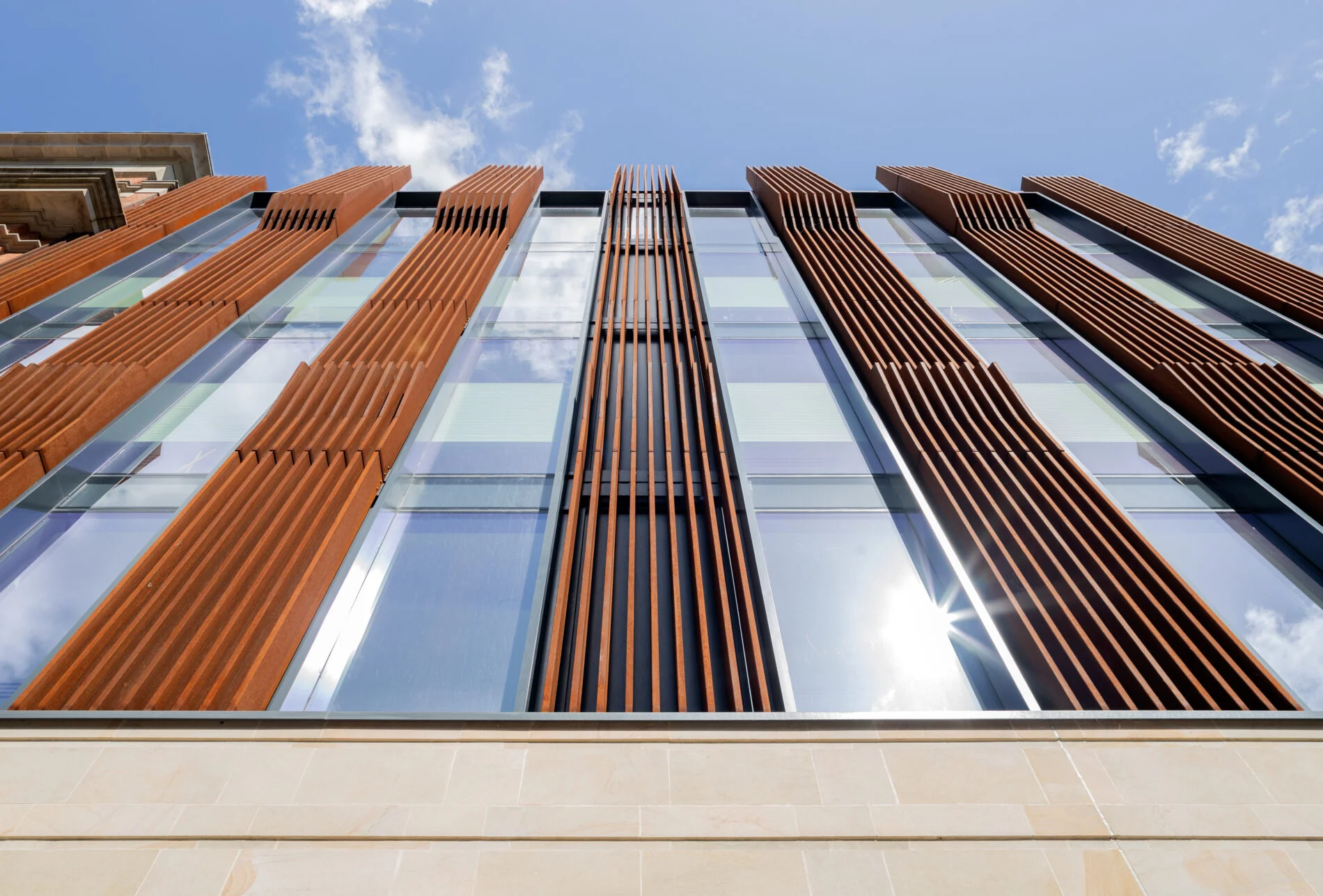

The contemporary building facade has moved decisively away from the monolithic. This shift toward composite systems is not merely an aesthetic trend but a technical necessity. As building codes demand higher R-values and lower air infiltration rates, the traditional single-wythe wall has become obsolete, replaced by multi-layered membranes that function with the complexity of biological organs.

Planning these systems requires a fundamental departure from traditional masonry or stick-built logic. When we discuss composite facade construction plans, we are referencing a roadmap for material compatibility and thermodynamic balance. A composite panel, such as Aluminum Composite Material (ACM) or Fiber-Reinforced Polymer (FRP), possesses physical properties that differ wildly from its structural backup.

As we navigate a landscape of increasing climate volatility, the composite facade stands as the primary tool for architectural resilience. However, this versatility introduces a paradox of choice. With thousands of possible combinations of cores, skins, and attachment methods, the risk of systemic “mismatch” is high. This article serves as a flagship reference, deconstructing the logic of hybrid enclosures to provide a definitive framework for long-term technical and fiscal success.

Understanding “composite facade construction plans”

At its core, the development of composite facade construction plans is an exercise in managing “Differential Behavior.” Unlike stone or brick, which are relatively homogeneous, a composite panel is a sandwich of materials with different thermal expansion coefficients and elastic moduli. Failure to allow for this movement results in “oil-canning” or, in extreme cases, adhesive delamination.

A multi-perspective analysis reveals that a frequent misunderstanding in the valuation of these systems is the “Flatness Fallacy.” A successful construction plan focuses less on the panel thickness and more on the “Stiffener Logic”—the internal bracing and perimeter extrusions that prevent the panel from vibrating under wind loads or sagging over time.

Oversimplification in this field often ignores the “Chemistry of the Bond.” Composite facades frequently rely on structural silicones, VHB tapes, or chemical adhesives to hold the assembly together. A robust plan must include a forensic look at the “Peel Strength” and long-term UV resistance of these bonds. If the plan specifies a specific composite panel but fails to dictate the surface preparation protocols for the adhesive, the facade is essentially a “time-bomb” of potential detachment.

Deep Contextual Background: The Rise of Synthetic Enclosures

The trajectory of composite facades in the United States began in the aerospace and automotive sectors. In the post-war era, the need for lightweight, high-strength materials led to the development of early sandwich panels. By the 1960s, these technologies trickled down into architecture, initially as corrugated plastic panels or basic insulated metal panels (IMPs) for industrial refrigeration.

The 1980s saw the commercialization of ACM, which revolutionized the “high-tech” look of corporate offices. Suddenly, architects could achieve the crispness of a metal facade without the weight or cost of solid plate aluminum. However, this era also introduced the “Fire-Safety Crisis.” Early composite cores were often made of low-density polyethylene (PE), which proved to be highly combustible.

Today, we are in the era of “Mineral-Core Composites” and “Bio-Based Polymers.” Modern composite facade construction plans are heavily influenced by the NFPA 285 fire test standard, which dictates how these assemblies must behave in a vertical fire spread scenario. The 2026 landscape is defined by “Intelligence-Integrated” composites—panels that incorporate phase-change materials (PCMs) to regulate temperature or integrated sensors to monitor moisture within the wall cavity.

Conceptual Frameworks and Mental Models

1. The “Stressed-Skin” Framework

Think of a composite panel like an I-beam. The outer skins (the flanges) handle the tension and compression, while the core (the web) maintains the distance between them and resists shear. If the bond between the skin and core fails, the structural capacity of the panel drops to nearly zero.

2. The “Hygrothermal Buffer” Model

This model treats the composite facade as a “valve” rather than a “wall.” Because composite panels are often vapor-impermeable, the plan must provide a path for interior moisture to escape. This framework prioritizes the “Ventilated Cavity” behind the panel, ensuring that the building can “exhale” even if the skin is airtight.

3. The “Service-Life Cascade”

In a composite assembly, different components age at different rates. The metal skin might last 60 years, but the EPDM gaskets may fail at 15 years. This mental model requires planning for “Component-Level Replacement”—ensuring that the panels can be removed to replace gaskets without destroying the structural backup.

Key Categories: Technical Variations and Material Logic

Category	Primary Skin / Core	Primary Benefit	Primary Trade-off
ACM (Polyethylene Core)	Aluminum / PE	Ultra-lightweight; Cheap	Highly combustible (Limited Use)
FR-ACM (Fire Rated)	Aluminum / Mineral	NFPA 285 compliant	Heavier; More expensive
FRP (Fiberglass)	Resin / Glass Fiber	Complex 3D geometries	UV sensitivity; High carbon
UHPC Composite	Concrete / Polymer	Extreme durability	High weight; Brittle
Zinc/Copper Composite	Exotic Metal / FR	Natural patina; No oil-canning	Extreme cost; Lead times
Translucent Composite	Polycarbonate / Honeycomb	Daylight harvesting	Low R-value; Glare issues

Realistic Decision Logic: The “Geometry-to-Performance” Filter

If the design calls for “Flat and Crisp,” the logic favors FR-ACM. If the design requires “Curvilinear and Organic,” the logic shifts toward FRP. The composite facade construction plans that succeed are those that do not force a material to perform a geometry it wasn’t intended for. Using a flat ACM panel to create a complex curve will almost always result in “Kinking” and joint failure.

Detailed Real-World Scenarios and Failure Modes

Scenario 1: The “Thermal Bowing” of South-Facing ACM

A project in Denver utilized large-format dark grey ACM panels on a southern exposure.

• The Error: The panels were fastened too tightly to the extrusions without allowing for vertical expansion.

• The Failure: At midday, the dark skin absorbed enough heat to expand 3/8″, causing the panels to “bow” outward.

• The Result: Permanent deformation of the panels and the shearing of several perimeter rivets.

• Planning Tip: Always utilize “Floating Points” in the fastening schedule for composite panels.

Scenario 2: The “Galvanic Decay” of the Attachment Clip

A coastal project used aluminum composite panels but fastened them with galvanized steel clips.

• The Error: Salt spray created an electrolyte bridge between the aluminum and the steel.

• The Failure: The aluminum skin around the fastener “pitted” and dissolved, leading to panel rattling.

• The Result: Total removal of the facade was required after only 7 years.

• Planning Tip: Specify stainless steel (316 grade) or dielectric isolation tape for all coastal composite assemblies.

Scenario 3: The “Interstitial Mold” in the IMP System

An industrial facility used Insulated Metal Panels (IMPs) with a “tongue-and-groove” joint.

• The Error: The vapor seal at the interior joint was compromised during installation.

• The Failure: Warm, moist interior air migrated into the joint and condensed on the cold exterior skin.

• The Result: Hidden mold growth inside the joint led to the failure of the adhesive bond between the metal and the foam.

Planning, Cost, and Resource Dynamics

The economics of composite facades are defined by “Prefabricated Precision.” While the raw materials (resins and aluminum) are expensive, the labor savings on-site are significant compared to masonry.

Composite System Cost Matrix (2026 Estimates)

Intervention Level	Material ($/sq ft)	Labor ($/sq ft)	Expected Life (Years)
Standard FR-ACM	$25 – $40	$15 – $25	25 – 35
Bespoke Sculptural FRP	$80 – $150	$40 – $70	30 – 45
Mineral Fiber Composite	$35 – $55	$25 – $40	40 – 50
Unitized Hybrid (Window+Wall)	$150 – $250	$30 – $50 (Crane)	50+

Opportunity Cost: The biggest mistake in composite facade construction plans is “Late-Stage Procurement.” Because these panels require CNC fabrication in a factory environment, a 4-week delay in the “Shop Drawing” phase can push the entire building’s “Dry-In” date by months, leading to massive carry costs on the construction loan.

Tools, Strategies, and Technical Support Systems

1. CNC Fabrication Modeling: Converting 2D architectural intent into 3D “Unfolded” flat patterns for precision cutting.

2. Hygrothermal Simulation (WUFI): Verifying that the vapor-impermeable composite skin won’t trap moisture in the structural backup.

3. Adhesion Testing (ASTM C1135): Physically pulling samples of the composite to ensure the structural silicone bond is achieving its rated strength.

4. BIM Integration (Level 4/5): Tracking each panel’s “ID Number” from the factory floor to its specific coordinate on the building elevation.

5. Thermal Imaging: Post-installation infrared scans to detect “Thermal Bypass” at the panel joints.

6. NFPA 285 Modeling: Computational fluid dynamics (CFD) to predict fire spread across the specific composite assembly.

7. 3D Point Cloud Scanning: Laser-scanning the “As-Built” concrete slab to ensure the factory-made composite panels will actually fit.

8. Vibration Analysis: Modeling the “Natural Frequency” of large-format panels to ensure they don’t hum or whistle in high winds.

Risk Landscape: A Taxonomy of Hybrid Hazards

• Delamination: The catastrophic failure of the bond between the skin and the core, usually caused by moisture infiltration or extreme heat.

• Ultraviolet Degradation: The breakdown of the resin matrix in FRP or the paint finish in ACM, leading to “Chalking” and brittleness.

• Oil-Canning: The visual waviness of a panel, often caused by thermal stress or improper “Stiffener” placement.

• Sequence Risk: Installing composite panels before the “Wet Trades” (concrete/plaster) are finished, leading to permanent staining or chemical etching of the finishes.

Governance, Maintenance, and Long-Term Adaptation

A composite facade is a “High-Tech asset” and must be governed as such. Unlike brick, it cannot be ignored for 50 years.

The Stewardship Checklist

• Yearly: A “Soft-Wash” with pH-neutral detergent. Accumulated grime can become acidic and eat through the protective PVDF coatings.

• 5-Year: Inspection of “Sealant Beads.” If the sealant has pulled away from the panel edge, it must be cut out and replaced immediately to prevent core delamination.

• 10-Year: Structural check of the “Anchor Bolts.” Composite panels are light, but they catch wind like a sail; vibration can loosen fasteners over time.

• Adjustment Triggers: If “Fading” exceeds a specific Delta-E value, it indicates a failure of the UV coating and should trigger a warranty claim or a protective re-coating.

Measurement, Tracking, and Evaluation

• Leading Indicators: The percentage of “Panel Rejections” during the mock-up phase. If the factory can’t hit tolerances in the lab, they won’t hit them on the 20th floor.

• Lagging Indicators: Tracking the building’s “Infiltration Rate” over 5 years. A rising rate suggests that the composite panel gaskets are shrinking or failing.

• Qualitative Signals: The “Acoustic Damping.” A well-installed composite facade should have a distinct “Solid” sound when tapped; a “Hollow” or “Rattling” sound is a signal of loose stiffeners or debonding.

Common Misconceptions and Oversimplifications

• Myth: “All composite panels are fire hazards.”

  • Correction: Mineral-core (FR) panels are highly resistant to fire. The hazard is associated specifically with older, polyethylene-core panels.

• Myth: “You can’t repair a composite panel.”

  • Correction: Small dents can be “filled and painted,” but the composite facade construction plans should always include “Attic Stock”—extra panels for replacement of damaged units.

• Myth: “Composite is a ‘cheap’ alternative to stone.”

  • Correction: High-end composites (Zinc/FRP) can be more expensive than stone when fabrication and sub-structure are included.

• Myth: “Expansion joints are just for looks.”

  • Correction: In composite design, the joint is a structural necessity; without it, the panel will self-destruct through thermal stress.

• Myth: “The core is just a filler.”

  • Correction: The core dictates the panel’s fire rating, its R-value, and its “Drumming” (acoustic) characteristics.

• Myth: “You can field-cut any composite panel.”

  • Correction: Many high-end composites must be factory-edged and “Returned” to protect the core from the elements.

Ethical and Practical Considerations

In the 2026 construction landscape, “Circular Economy” principles are becoming mandatory. Composite panels are historically difficult to recycle because of the bond between the metal and the polymer. Ethical composite facade construction plans now prioritize “Mechanically Bonded” or “Deconstructible” panels that can be separated into their constituent materials at the end of the building’s life. Furthermore, the “Embodied Carbon” of the resins and aluminum must be balanced against the energy savings the facade provides over its 30-year life. A facade that is “Carbon-Negative” in production but requires replacement in 10 years is an environmental failure.

Conclusion: The Architecture of Orchestration

 We are no longer builders of walls; we are orchestrators of technical assemblies. The composite facade represents the pinnacle of this shift—a surface that is as thin as an inch yet performs the work of a foot of masonry.

To design and plan these systems is to embrace the complexity of the hybrid. It requires a steward-ship mindset that looks past the initial “Ribbon Cutting” toward the thirtieth year of performance. By respecting the chemistry of the bonds, the physics of the expansion, and the necessity of the ventilated cavity, we create enclosures that are as enduring as they are innovative. The composite facade is not a compromise; it is the most evolved expression of the modern building skin.
