How to Avoid Facade Structural Failure: A Definitive Engineering Editorial

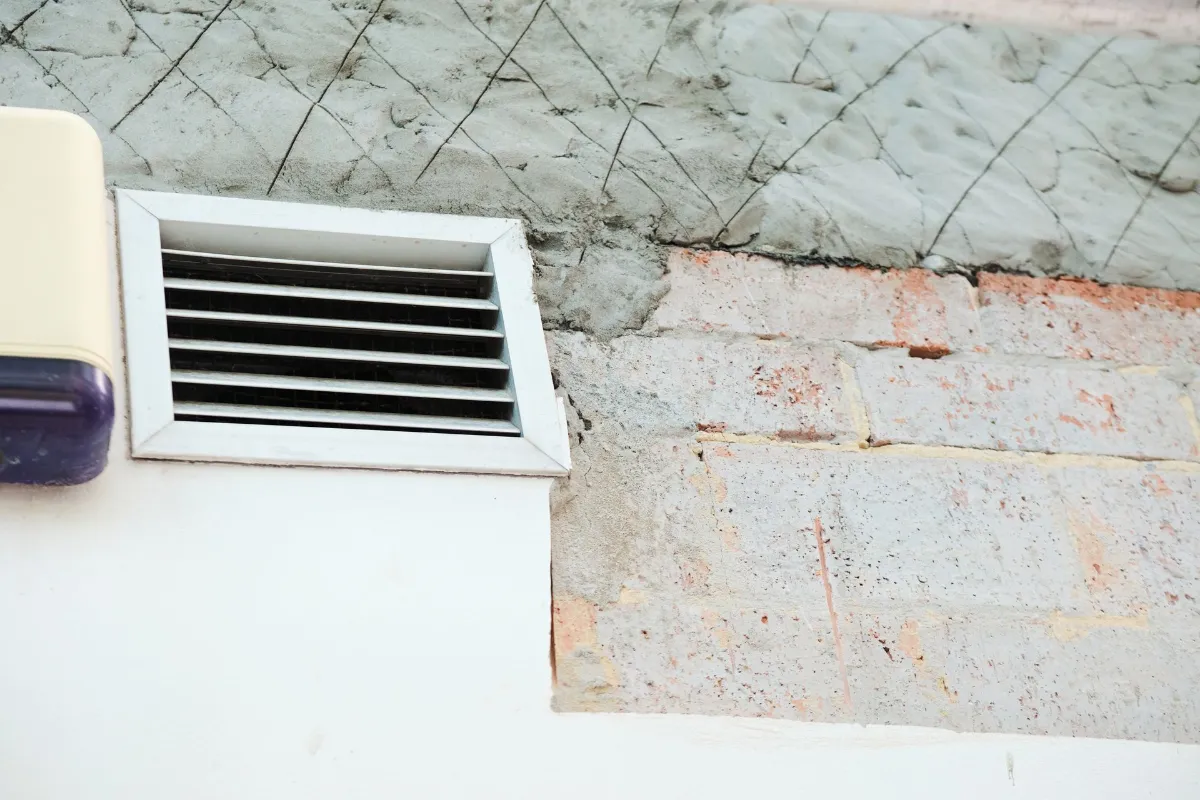

The building facade is a paradox of modern engineering. It is simultaneously the most visible expression of architectural intent and the most vulnerable component of the structural whole. Unlike the primary frame—the columns and beams that remain protected within the controlled interior environment—the facade exists in a state of perpetual combat with the elements. It must endure the relentless cycling of thermal expansion, the kinetic energy of hurricane-force winds, and the insidious chemistry of atmospheric pollutants. When this system fails, it rarely does so in a vacuum; failure at the edge often signals a systemic breakdown in the coordination between design, material science, and field execution.

A facade failure is seldom a singular event. It is more often the culmination of “cascading oversights”—a series of minor deviations that, when compounded over decades, result in a catastrophic loss of equilibrium. As urban density increases and building heights push into more turbulent atmospheric strata, the margin for error has narrowed. We are no longer designing simple masonry skins; we are engineering complex, multi-material assemblies that must accommodate significant building movements while maintaining an airtight and watertight seal.

Stewardship of the building envelope requires a shift from viewing the facade as an aesthetic finish to treating it as a primary structural system. This editorial reference deconstructs the mechanisms of instability and provides a rigorous framework for risk mitigation. By moving beyond the surface symptoms of distress, we can address the root causes of envelope degradation and implement strategies that ensure the long-term safety of the public and the preservation of the asset.

Understanding “how to avoid facade structural failure”

To grasp how to avoid facade structural failure, one must move past the misconception that “strength” is the primary defense. In facade engineering, ductility and adaptability are often more critical than raw material thickness. A facade that is too rigid will shatter or buckle when the building’s primary frame deflects under live loads. True failure avoidance is rooted in the “Science of Connections”—the engineering of the brackets, clips, and anchors that transfer the facade’s load to the building’s skeleton.

From a multi-perspective analysis, avoiding failure requires an intersectional approach. To the structural engineer, it is about gravity and lateral load paths. To the building scientist, it is about managing the thermal “pumping” of air and moisture that can corrode those very load paths. A common misunderstanding in the industry is that if a facade is “watertight,” it is structurally sound. In reality, a perfectly sealed facade can be a death trap if it traps interstitial condensation that leads to the “invisible” corrosion of concealed steel anchors.

Oversimplification risks are highest when assuming that modern materials are “fit and forget.” For instance, Aluminum Composite Material (ACM) or high-pressure laminates offer incredible versatility, but their coefficient of thermal expansion is vastly different from the concrete or steel they are attached to. If the construction plan fails to incorporate “sliding joints” or “slotted holes” in the attachment hardware, the material will eventually shear its own fasteners. Avoiding failure is, therefore, a matter of managing the “Dynamic Gap”—ensuring that every component has the freedom to move without compromising the stability of the whole.

Deep Contextual Background: The Evolution of Enclosure Stress

The historical transition from mass masonry to the modern curtain wall represents a fundamental shift in how loads are managed. In the 19th century, the facade was the structure. Thick brick or stone walls carried both the weight of the floors and the wind loads. Failure in these systems was usually obvious—large, diagonal cracks that indicated foundation settlement or over-stressing.

The mid-20th century introduced the “non-load-bearing” skin. By decoupling the facade from the structure, architects could utilize glass and thin metallic panels. However, this introduced a new category of risk: the “Connector Risk.” As the skin became lighter, the number of mechanical connections increased exponentially. In a modern 40-story tower, there may be over 10,000 individual anchor points. The systemic evolution of the facade has moved from a challenge of “Mass Stability” to a challenge of “Connection Redundancy.”

Today, we face the added complexity of “Climate Loading.” Wind patterns in urban canyons are more turbulent than they were fifty years ago, and diurnal temperature swings are becoming more extreme. The historical data used to calculate wind loads in 1970 is often insufficient for the realities of 2026.

Conceptual Frameworks and Mental Models

1. The “Load Path Trace”

Every pound of weight in a facade must have a clear, uninterrupted path to the building’s primary foundation. A fundamental framework for avoiding failure is to “walk the load.” If a facade panel sits on a bracket, the bracket must transfer the load to a bolt, the bolt to an insert, and the insert to the concrete slab. Failure occurs when this path is “broken” by a missing washer, a stripped thread, or a corroded weld.

2. The “Deformation Compatibility” Model

This model posits that the facade must be “compatible” with the movements of the building frame. If a concrete slab “creeps” (shortens over time) or a steel beam deflects under a snow load, the facade must have enough “play” in its joints to accommodate that change. If the joints are too narrow or filled with rigid material, the facade becomes an unintentional load-bearing element, leading to crushing or spalling.

3. The “Corrosion of the Unseen” Model

This mental model assumes that the most dangerous failure is the one that cannot be visually inspected. It focuses on “Hygrothermal Integrity”—ensuring that the air barrier and vapor retarder are positioned to prevent moist air from reaching the metallic connectors. In this framework, “structural” safety is a subset of “moisture” management.

Key Categories: Failure Modes and Trade-offs

Avoiding structural failure requires identifying the specific vulnerabilities of different facade archetypes.

Facade Type	Primary Structural Risk	Critical Avoidance Strategy
Glass Curtain Wall	Sealant fatigue / Glass breakage	Pressure-equalized design; Heat-soak testing
Unitized Aluminum	Anchor slippage / Thermal stress	Serrated washers; Slotted expansion joints
Stone Veneer	Kerf failure / Anchor corrosion	Stainless steel Type 316 anchors; Back-ventilation
EIFS / Stucco	Delamination / Substrate rot	Drainage planes; Mechanical secondary fasteners
Pre-cast Concrete	Connection embrittlement	Protection of weld plates; Periodic NDT testing
Brick Cavity Wall	Tie failure / Shelf angle rust	Hot-dip galvanized or stainless ties; Weep holes

Realistic Decision Logic: The “Redundancy” Filter

In high-seismic or high-wind zones, the logic of how to avoid facade structural failure dictates a “Fail-Safe” design. This means that if one anchor fails, the surrounding anchors have the “Reserve Capacity” to hold the load. A plan that relies on “Single-Point” stability is a high-risk plan.

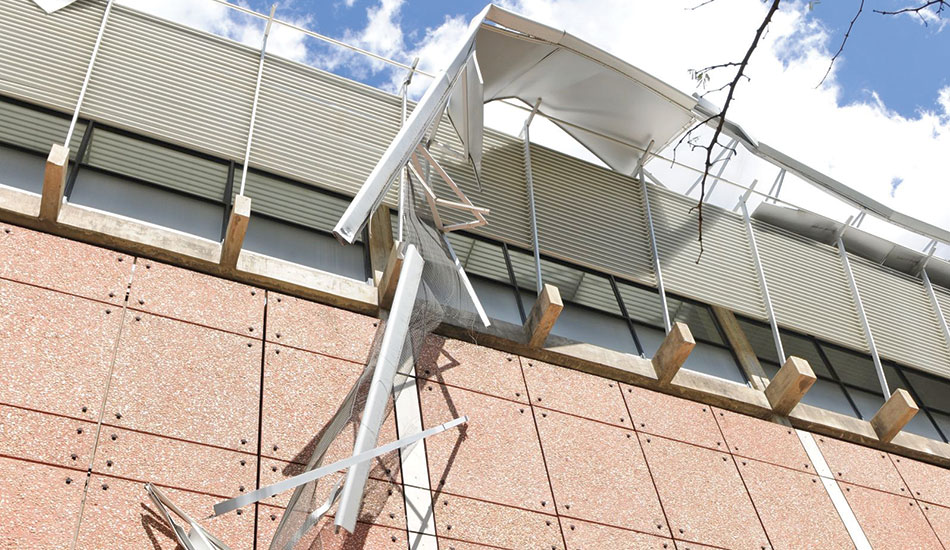

Detailed Real-World Scenarios and Failure Modes

Scenario 1: The “Shelf Angle” Collapse

A 1980s brick-veneer building experienced a sudden collapse of a 20-foot section of masonry.

• The Cause: The steel shelf angle (the L-shaped bracket holding the brick) had corroded.

• The Failure: Clogged weep holes trapped water against the steel. The steel expanded as it rusted (“rust-jacking”), which actually pushed the brick further out, accelerating the failure.

• The Avoidance: Utilizing stainless steel angles and ensuring that flashing and weeps provide a 100% clear path for water to exit the cavity.

Scenario 2: The “Spandrel Glass” Spontaneous Breakage

A new high-rise saw several glass panels shatter and fall to the street without warning.

• The Cause: Nickel Sulfide (NiS) inclusions within the tempered glass.

• The Failure: Microscopic impurities expanded over time due to sun exposure, creating internal tension that eventually exceeded the glass strength.

• The Avoidance: Specifying “Heat-Soak Testing,” where glass is baked in a factory to force the failure of panels containing impurities before they reach the job site.

Scenario 3: The “Anchor Pull-out” in a Seismic Event

During a moderate earthquake, several stone cladding panels detached from a parking garage.

• The Cause: The anchors were drilled into the “edge-distance” of the concrete slab.

• The Failure: The vibration caused the concrete at the very edge of the slab to “cone” or break away because the anchors were placed too close to the corner.

• The Avoidance: Strict adherence to “Edge-Distance” requirements and the use of chemical (epoxy) anchors in high-vibration environments.

Planning, Cost, and Resource Dynamics

The economics of avoiding failure are often skewed by “First-Cost” bias. Investing in higher-quality connectors and detailed engineering represents a small fraction of the total budget but eliminates the catastrophic liability of failure.

Reliability vs. Cost Table (2026 Projections)

Strategy	CAPEX Premium	Failure Risk Reduction	ROI Period
Stainless Steel Anchors (316)	2–4% (Facade)	80% (Long-term)	10–15 Years
Wind Tunnel Modeling	< 1% (Total)	95% (Lateral)	Immediate
Full-Scale Mock-up Testing	1–3% (Facade)	70% (Execution)	Immediate
Third-Party Peer Review	< 0.5% (Total)	50% (Design)	Immediate

Opportunity Cost: The cost of a single “Restoration” project (stripping and replacing a failed facade) is typically 4 to 6 times the cost of the original installation. A plan that saves $50,000 on cheaper ties today often creates a $2,000,000 liability twenty years later.

Tools, Strategies, and Support Systems

1. Finite Element Analysis (FEA): Modeling the stress concentrations in custom-designed brackets to identify “weak spots” before manufacturing.

2. Wind Tunnel Testing: Using physical models to understand how wind “swirls” around a building’s unique geometry, preventing the “vortex shedding” that can rattle panels loose.

3. Non-Destructive Testing (NDT): Utilizing ultrasound or X-ray to inspect existing welds or anchors behind the facade without tearing it down.

4. BIM Integration: Using 3D modeling to ensure that the facade anchors don’t “clash” with the building’s rebar or mechanical pipes.

5. Thermal Imaging: Identifying “cold bridges” that might lead to localized condensation and hidden corrosion.

6. Pull-out Testing: On-site verification where a hydraulic jack is used to “pull” on installed anchors to ensure they meet the design load.

7. Smart Sensors: Embedding “Strain Gauges” in critical facade anchors on high-rise buildings to provide real-time data on structural health.

8. Digital Twins: Maintaining a virtual model of the facade that tracks the “age” and “maintenance history” of every panel.

Risk Landscape: A Taxonomy of Compounding Failures

• Material Incompatibility: When aluminum brackets are in direct contact with wet concrete or steel, leading to galvanic corrosion.

• Workmanship Variance: The most common risk. A bolt that is “hand-tight” instead of “torque-wrench tight” can vibrate loose over five years of wind cycles.

• The “Blind Joint” Risk: Failure in the sealants that allows water to reach the anchors, where it can stay trapped for months.

• Fatigue Risk: The cumulative effect of millions of tiny movements (wind/thermal) that slowly work a fastener loose or “work-harden” a metal bracket until it snaps.

Governance, Maintenance, and Long-Term Adaptation

A facade is a “Dynamic System” that requires a Governance Document. In many jurisdictions (like New York City with FISP), this is a legal mandate.

The Stewardship Checklist

• Post-Seismic/Storm Audit: A mandatory visual inspection of all “critical” joints and anchors after a major weather event.

• 10-Year Sealant Replacement: Sealants are the “front-line” of structural defense; if they fail, the anchors are at risk.

• Anchor Torque Verification: Periodically checking a sample of mechanical anchors to ensure they haven’t loosened.

• Drainage Verification: Pouring water into the cavity drainage system to ensure it exits the weeps and isn’t pooling on the shelf angles.

Measurement, Tracking, and Evaluation

• Leading Indicators: “Torque-log” completion rates during construction; moisture sensor readings within the cavity.

• Lagging Indicators: Visible “efflorescence” (white salt stains) which indicates water is moving through the structure; “Cracked” or “Crazed” glass.

• Qualitative Signals: “Creaking” or “Popping” noises during high winds or rapid temperature changes (sunrise/sunset), which may indicate that expansion joints are seized.

• Documentation Example: A “Facade Structural Map” detailing the location of every anchor and the specific alloy/fastener used.

Common Misconceptions and Oversimplifications

• Myth: “The facade is held up by the window frames.”

  • Correction: Window frames are usually “Infills.” The facade load must be independently supported by structural anchors to the building slab.

• Myth: “Caulk is a structural material.”

  • Correction: Caulk (sealant) is for weather-tightness. If your facade depends on caulk for stability, it is a catastrophic failure waiting to happen.

• Myth: “Modern concrete doesn’t move.”

  • Correction: Concrete slabs “shorten” and “creep” for years after they are poured. A facade must be designed to “absorb” this shrinkage.

• Myth: “Stainless steel is rust-proof.”

  • Correction: In high-salt environments, even Grade 304 stainless can corrode. Grade 316 is required for coastal structural integrity.

• Myth: “If it passed the initial inspection, it’s safe forever.”

  • Correction: Facades age. Fasteners loosen, and gaskets shrink. Stability is a function of time.

• Myth: “Standard bolts are fine for all connections.”

  • Correction: Structural facade connections often require “locking” nuts or specific “washers” to prevent vibration-induced loosening.

Ethical and Practical Considerations

In the 2026 landscape, we must address the “Liability of Longevity.” As we build thinner and lighter, we are reducing the “Factor of Safety” that was inherent in heavy masonry. Avoiding structural failure is an ethical obligation to the “Public Realm.” A falling 50-pound stone panel from the 30th floor is a lethal event. Stewardship means prioritizing the “Redundancy” of the system over the “Aesthetic” of the zero-sightline joint. We must also consider the “Embodied Carbon” of replacement; the most sustainable building is the one that never has to be re-clad due to a structural failure.

Conclusion: The Architecture of Equilibrium

The quest for how to avoid facade structural failure is essentially a quest for balance. It is the reconciliation of the “immovable” building frame with the “ever-moving” exterior environment. A successful facade is one that doesn’t resist the laws of physics, but rather channels them. It allows for heat, wind, and gravity to pass through or around it without causing permanent distress.

The mastery of the building envelope is found in the unseen details—the thickness of a washer, the torque of a bolt, and the depth of a drainage cavity. By treating the facade as a high-performance structural machine, we move away from reactive repair toward a future of resilient urbanism. The integrity of our skylines depends not on the beauty of the glass, but on the strength and durability of the connections that hold it to the sky.
