How to Manage Facade Peeling Paint Issues: A Technical Editorial Guide

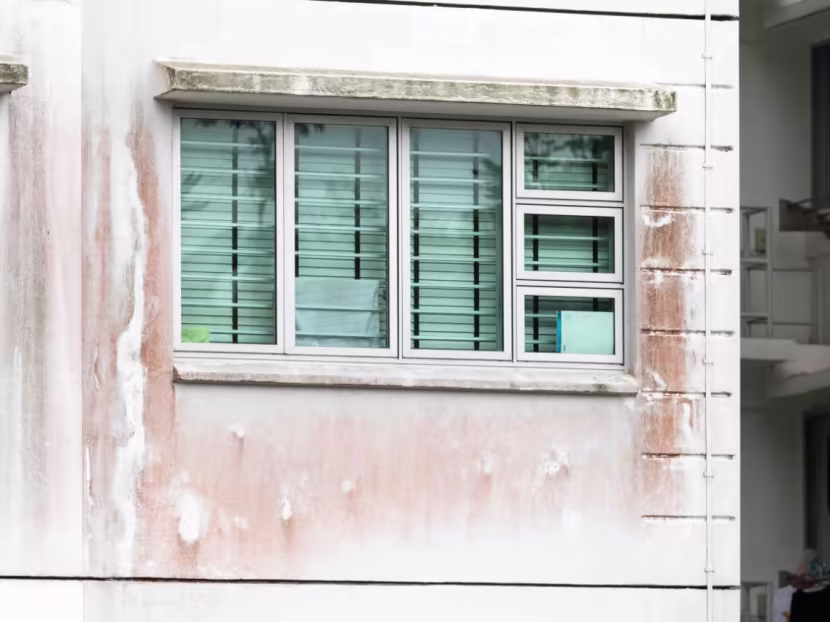

The integrity of a building’s exterior coating is often the first casualty in the silent war between architecture and the environment.  In the context of large-scale facades, this failure represents a lapse in moisture management, thermal regulation, or chemical compatibility. To view a peeling surface simply as an aesthetic flaw is to ignore the complex physics of delamination that, if left unaddressed, can lead to the structural degradation of the underlying masonry, metal, or composite.

 However, the efficacy of these “breathable” skins depends entirely on a stable interface. When a facade begins to shed its finish, the underlying cause is rarely the paint itself; rather, it is usually a force acting from behind or beneath the film. Whether it is hydrostatic pressure from interstitial condensation or the expansion of salts through efflorescence, the visible “peel” is merely the final stage of a prolonged industrial conflict.

As we navigate the maintenance requirements of the mid-2020s, the financial and environmental costs of facade remediation have escalated. A sophisticated approach to stewardship requires a forensic understanding of why coatings fail and how to intervene at the molecular level to ensure longevity. This article serves as a definitive reference for those tasked with the long-term management of building enclosures, moving past surface-level fixes into the realm of systemic resilience.

Understanding “how to manage facade peeling paint issues”

To effectively address how to manage facade peeling paint issues, one must first dismantle the oversimplification that “more paint” is the solution. In fact, on many historic or high-performance buildings, the addition of new, non-breathable coatings over old ones is a primary driver of failure. From a multi-perspective analysis, managing delamination requires a balance between chemical adhesion, mechanical tooth, and vapor permeability. If a plan focuses on the top layer without assessing the “Cohesion” of the layers beneath it, the new finish will simply pull the old layers off the wall.

A common misunderstanding in the facility management sector is the “Waterproof Fallacy.” Many stakeholders believe that the goal of a facade coating is to seal the building perfectly against external rain. However, buildings are dynamic; they contain internal humidity and moisture that must be allowed to escape. When a high-gloss, elastomeric coating is applied to a porous masonry wall, it creates a “Vapor Trap.” As the sun hits the wall, internal moisture turns to vapor, expands, and exerts several pounds of pressure per square inch against the paint film. This is the primary mechanism of “Blistering,” which inevitably leads to peeling.

Oversimplification risks are highest when assuming that all “peels” are created equal. Forensic analysis identifies several distinct types of separation: adhesive failure (the paint lets go of the wall), cohesive failure (the paint splits within itself), and substrate failure (the wall itself crumbles behind the paint). Understanding how to manage facade peeling paint issues involves identifying which of these failures is occurring before specifying a repair. A repair that uses a high-strength epoxy on a soft, crumbling lime-render wall will cause the entire surface of the wall to delaminate as the epoxy shrinks and pulls.

Deep Contextual Background: The Evolution of Protective Membranes

Historically, facade finishes were sacrificial. In the 19th and early 20th centuries, lime washes and mineral paints were the standard. These materials were inherently breathable; they didn’t “peel” because they didn’t form a plastic film. Instead, they gradually eroded or “chalked” over time, providing a natural indicator of when re-application was necessary.

The mid-century shift toward petroleum-based alkyds and eventually 100% acrylic latices revolutionized the industry by providing vibrant colors and faster dry times. However, these new polymers introduced the concept of the “Film-Forming” finish. Unlike mineral paints that petrify into the substrate, film-formers sit on top. This introduced a new vulnerability: the “Inter-coat Adhesion” risk. As buildings were repainted every decade, thick layers of disparate chemistries began to accumulate.

Today, we are in the era of “Smart Coatings”—fluoropolymers and siloxane-modified acrylics that are designed to shed dirt while allowing high levels of vapor transmission. Yet, we are also dealing with the “Legacy Burden” of a century of improper coating applications. Most modern facade peeling issues are not failures of modern technology, but the violent reaction of modern materials being applied over unstable, historical layers.

Conceptual Frameworks and Mental Models

1. The “Permeability Gradient” Framework

This model posits that the outermost layer of a facade should always be more vapor-permeable than the layer beneath it. This allows any moisture that enters the wall to continue moving outward. If this gradient is reversed—by applying a thick, rubberized paint over a breathable primer—moisture will pool at the interface and cause the topcoat to peel.

2. The “Mechanical Tooth vs. Chemical Bond” Model

A coating stays on a wall through two primary forces: mechanical “anchoring” into the pores of the surface and chemical “cross-linking.” When a surface is too smooth (like old glossy oil paint) or too contaminated (with atmospheric salts), neither force can activate. The mental model here is “Surface Energy”—the cleaner and more porous the surface, the higher the surface energy and the stronger the bond.

3. The “Thermal Stress Fatigue” Model

Facades are subject to “Thermal Shock.” A dark-colored paint on a south-facing wall can reach temperatures of 160°F during the day and drop to 60°F at night. This framework views the paint film as an elastic band. Over years of stretching and shrinking, the polymer becomes brittle. Peeling is the result of the paint “losing its memory” and snapping.

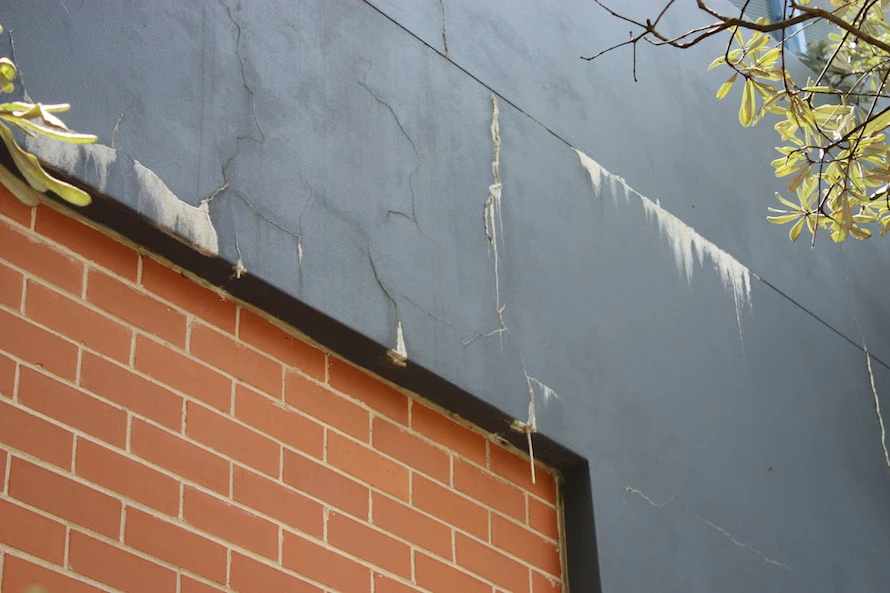

Key Categories: Failure Archetypes and Trade-offs

Failure Type	Primary Cause	Visual Signature	Typical Intervention
Osmotic Blistering	Trapped vapor/moisture	Bubbles; fluid-filled sacs	Improve ventilation; use mineral paint
Inter-layer Delamination	Chemical incompatibility	Large sheets peeling off	Complete strip; prime with bridge-coat
Efflorescence Peeling	Salt migration through masonry	White powder behind paint	Address water leaks; neutralize salts
Check-Cracking	UV degradation / Brittleness	“Alligator” skin patterns	Sand to sound substrate; elastic topcoat
Chalking	Resin breakdown	Powder residue on touch	Clean; apply UV-resistant finish
Surfactant Leaching	Painting in high humidity	Waxy, brown streaks	Wash with mild detergent; re-coat

Realistic Decision Logic: The “Compatibility” Filter

When deciding how to remediate a peeling facade, the logic must be: “Test, then Treat.” This involves an “Adhesion Tape Test” (ASTM D3359) to see if the existing layers are stable. If the old paint pulls away easily, any new coating applied on top—no matter how expensive—is a guaranteed future failure. In such cases, the only viable (though costly) decision is the total mechanical or chemical removal of all previous layers.

Detailed Real-World Scenarios and Technical Case Studies

Scenario 1: The “Vapor Trap” on High-Rise Masonry

A commercial building was coated with a high-build elastomeric paint to “seal” minor cracks.

• The Error: The masonry was saturated with moisture from a failed roof parapet.

• The Failure: Within one summer, the entire southern facade developed “giant blisters” the size of dinner plates.

• The Management Fix: The elastomeric was stripped, the parapet repaired, and a siloxane-based coating with a high “perm-rating” was applied.

Scenario 2: The “Mill Scale” Failure on Structural Steel

A decorative metal facade began peeling in small, sharp flakes.

• The Error: The metal was not sandblasted to “White Metal” before painting, leaving the industrial mill scale intact.

• The Failure: The mill scale expanded at a different rate than the steel, popping the paint off from the bottom up.

• The Management Fix: Mechanical grinding to SSPC-SP10 standards followed by a zinc-rich primer.

Scenario 3: The “Alkaline Burn” on New Concrete

New concrete panels were painted within 7 days of being cast.

• The Error: High pH levels in new concrete (alkalinity) attacked the resins in the paint.

• The Failure: The paint turned “soapy” and slid off the wall.

• The Management Fix: Neutralizing the surface with a mild acid wash or waiting 28 days for the concrete to cure before using an alkali-resistant primer.

Planning, Cost, and Resource Dynamics

The economics of managing peeling paint are heavily weighted toward “Surface Preparation.” In a professional facade project, 70% of the budget should be spent on cleaning, scraping, and priming, while only 30% is spent on the actual finish coat.

Cost and Variability Table (2026 Estimates)

Intervention Level	Cost (per sq. ft.)	Expected Longevity	Resource Intensity
Spot Repair / Touch-up	$3 – $7	2 – 3 Years	Low (Hand tools)
Scrape, Prime, & Re-coat	$12 – $22	7 – 10 Years	Moderate (Mechanical)
Full Chemical Strip	$35 – $60	15 – 20 Years	High (Environmentally sensitive)
Substrate Consolidation	$50 – $90	25+ Years	Extreme (Forensic masonry)

Opportunity Cost: Choosing a “quick fix” re-coat over a full strip often results in a 400% increase in long-term costs. Each failed layer adds to the “Access Debt”—the cost of scaffolding or rope access that must be paid again when the quick fix fails in 24 months.

Tools, Strategies, and Technical Support Systems

1. Infrared Thermography: Identifying “moisture pockets” behind the paint that are invisible to the naked eye.

2. Electronic Moisture Meters: Verifying that a substrate has less than 15% moisture content before any paint is applied.

3. Hygroscopic Modeling: Simulating the vapor drive through the wall to determine the required “Perm Rating” for the new coating.

4. Lead-Based Paint Testing: Essential for pre-1978 structures to determine containment requirements.

5. Abrasive Blasting (Sponge/CO2): Removing paint without damaging delicate masonry substrates.

6. Pull-off Adhesion Testers (ASTM D4541): Quantifying exactly how many PSI of force the paint can withstand before it fails.

7. pH Indicator Pens: Testing concrete or lime render to ensure it won’t “burn” the new resin.

8. Industrial Rope Access (IRA): A cost-effective way to perform “Adhesion Audits” on high-rise structures without the cost of full scaffolding.

Risk Landscape and Failure Modes

• Chemical “Incompatibility” Risks: Applying a water-based acrylic over an old, chalky oil paint without a transitional primer.

• Environmental Timing: Painting when the substrate is within 5 degrees of the “Dew Point,” leading to trapped microscopic moisture.

• Substrate “Spalling”: When the paint bond is so strong that it pulls the face of the brick or stone off as it shrinks.

• Toxicity and Runoff: The management of old lead-based chips or chemical strippers entering the local water table.

Governance, Maintenance, and Long-Term Adaptation

A facade is not a “finished” product; it is a managed asset. Long-term success requires a “Facade Governance Plan.”

The Stewardship Checklist

• Bi-Annual Visual Inspection: Utilizing drones or high-zoom optics to look for “Micro-Cracking” before it becomes a peel.

• Cleaning Protocol: Washing the facade every 2–3 years to remove atmospheric salts that act as “bond-breakers.”

• Gutter and Downspout Audit: 90% of peeling paint is caused by “Concentrated Water Shedding” from failed drainage.

• Documentation of Batches: Keeping records of specific paint batches and dates of application to identify localized “Application Errors.”

Measurement, Tracking, and Evaluation

• Leading Indicators: “Surface Temperature” and “Relative Humidity” logs during application; “Primer Pull-tests.”

• Lagging Indicators: “Gloss Retention” over 5 years; the absence of “Blistering” after a heavy rain season.

• Qualitative Signals: The “Tap Test.” A hollow sound when tapping a painted surface indicates that delamination has begun, even if the paint isn’t peeling yet.

• Quantitative Signal: Measuring the “Chalking Rate” using standardized cloth wipes to determine UV degradation speed.

Common Misconceptions and Oversimplifications

• Myth: “Thicker paint lasts longer.”

  • Correction: Thick paint is often less flexible and traps more moisture. Two thin coats are superior to one thick coat.

• Myth: “Primer is just thinned-down paint.”

  • Correction: Primer is a completely different chemistry designed for “Wetting” and “Adhesion.” Using paint as its own primer is the #1 cause of peeling.

• Myth: “You can paint over anything if you use a power washer.”

  • Correction: Power washers often force water into the substrate, causing the new paint to peel from the inside out within weeks.

• Myth: “Elastomeric paint fixes cracks.”

  • Correction: It hides cracks temporarily. If the cracks are active (moving), the paint will eventually “bridge-fail” and peel.

• Myth: “Painting in the sun helps it dry.”

  • Correction: Direct sun causes the surface to “Skin over” too fast, trapping solvents beneath that cause blisters.

• Myth: “Self-priming paints are professional grade.”

  • Correction: They are “DIY” convenience products. For a high-performance facade, the primer and topcoat must be distinct, specialized layers.

Ethical and Practical Considerations

In the 2026 landscape, we must address the “Volatile Organic Compound” (VOC) paradox. While low-VOC paints are better for the environment and air quality, some are less durable than their traditional counterparts. Stewardship requires balancing the “Environmental Footprint” of the material with the “Lifecycle Carbon” of the building.  Furthermore, we must consider the “Heritage Ethics” of painting historic stone; in many cases, the most ethical management strategy is to not paint, but to restore the natural substrate.

Conclusion: The Equilibrium of the Envelope

The mastery of how to manage facade peeling paint issues is ultimately found in the pursuit of “Hygrothermal Equilibrium.” It is the acknowledgement that a building’s skin must breathe as much as it protects. When we treat the facade as a dynamic membrane rather than a static wall, the focus shifts from the “Peel” to the “Process.”

A successful intervention is one that respects the hierarchy of adhesion—prioritizing substrate stability and vapor movement over mere color coverage. In the long-term stewardship of the built environment, the most durable facade is not the one with the most paint, but the one with the most integrity at the interface. By managing the invisible forces of vapor and salt, we ensure that the visible finish remains a testament to the building’s health rather than a mask for its decay.
